Tiltrotators For Rear Backhoes

Rear Backhoe Tiltrotators

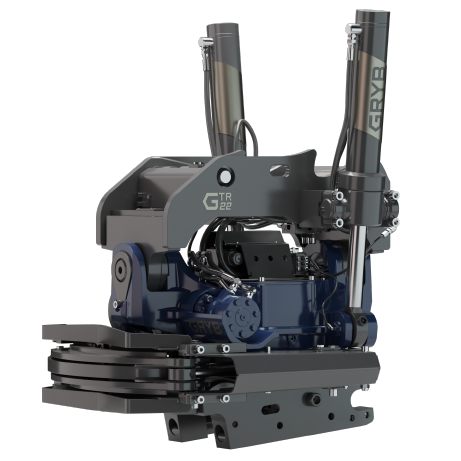

The GRYB tiltrotator is an extension of the arm, and it allows you to tilt and/or rotate any bucket/attachment you connect to it. The perfect attachment for you rear backhoe! It features a grease-lubricated gear case, constant 360° rotation, and 40° tilt in all directions. The tiltrotator can be mounted on the quick coupler or directly on the excavator's arm. The ease of maneuvering the tiltrotator using a joystick and rocker switch allows the operator to easily and efficiently perform advanced and precision work without having to move the machine. It also makes the work environment safer, both for the operator and for people working near the machine. The GTR tiltrotator is equipped with double-acting cylinders for tilting.

Tilting 2 x 45°
Infinite rotation 360˚
Integrated Grip Module
Grease-filled gear housing
12/24V DC - Hardlock® coupler
Load holding cylinders
Rotation and tilt sensors
Robust critical components

catalog

Selling sheet

Get a quote

Product Specifications

Model	Machine Weight (tons)	Approx weight (lbs)	Dimensions A / B / C / D	Recommended max oil flow (GPM)	Working pressure max (psi)	Tilt torque at 3'000PSI / 21 Mpa (lb/ft)	Rotation speed (sec/rotation)	Turn torque (lb/ft)	Max breakout torque (lb/ft)	Max breakout force (lb)	Max bucket width (in)

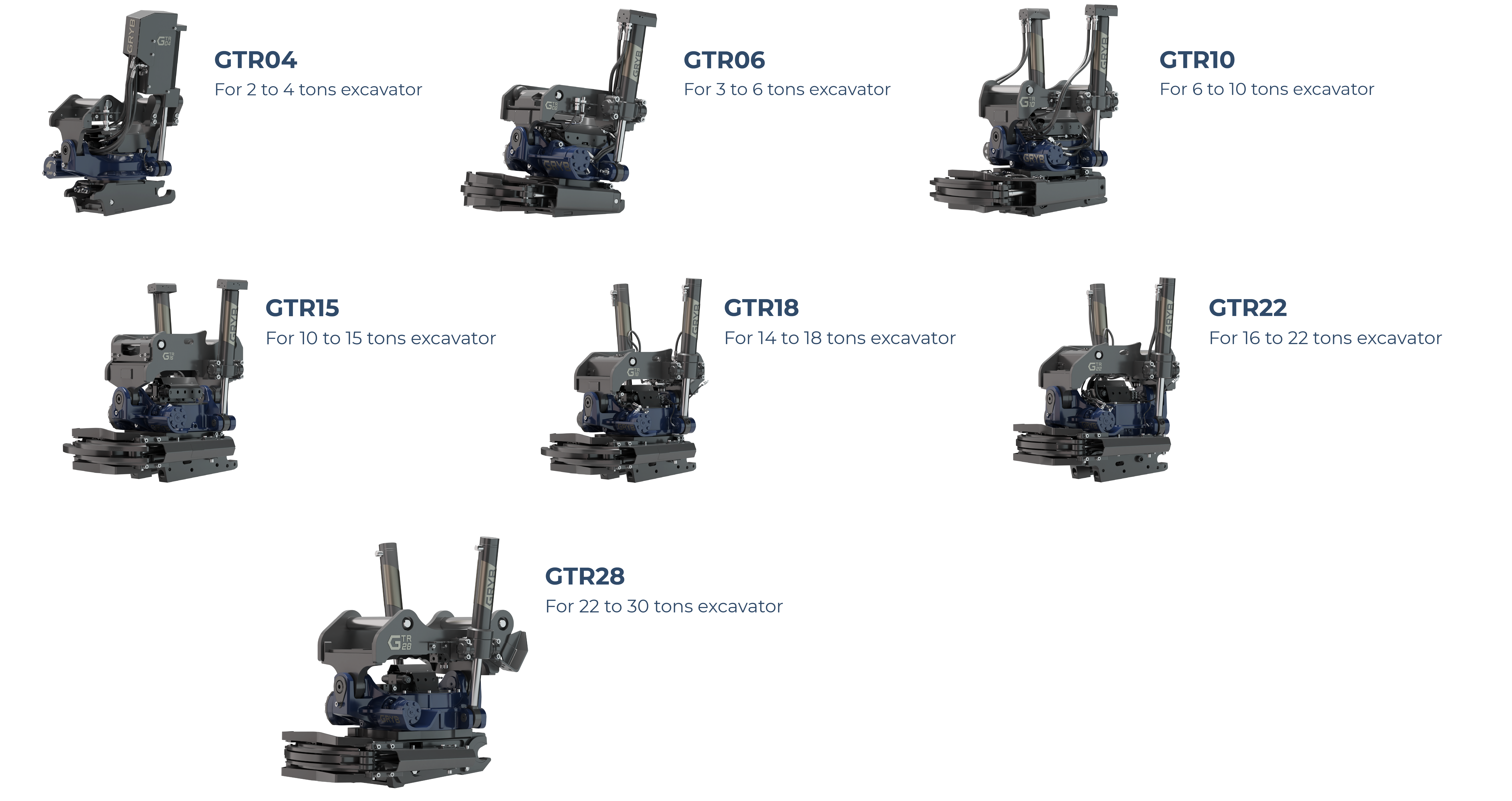

GTR-04	2 to 4	216	28 / 18 / 13 / 17	16	3,046	2,876	7	2,212		8,992	42
GTR-06	3 to 6	331	28 / 19 / 14 / 16	21	3,046	9,072	7	3,687	32,452	11,240	52
GTR-10	6 to 10	518	34 / 23 / 17 / 24	26	3,046	18,660	7	3,687	55,317	15,736	56
GTR-15	10 to 15	816	36 / 29 / 18 / 26	26	3,046	25,151	7	5,162	105,471	24,729	60
GTR-18	14 to 18	1,080	36 / 30 / 20 / 32	32	3,046	33,928	7	4,425	136,449	29,225	72
GTR-22	16 to 22	1,3674	39 / 33 / 24 / 33	32	3,046	38,353	7	5,162	169,639	33,721	80
GTR-28	22 to 30	1,653	43 / 40 / 26 / 34	32	3,046	39,091	7	5,162	228,644	40,465	80
