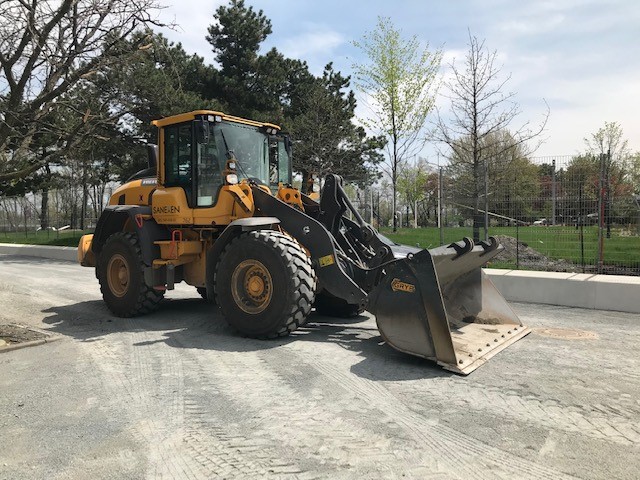

SIDE DUMP BUCKET
Our side dump bucket will facilitate the loading of trucks in places where access is too restricted for conventional loading. The side dump buckets come equipped with a sequential distributor with automatic unlocking to prevent side dumping during the standard use of the bucket. Your work will, therefore, always be safe. The maximum dump angle is set at 120°.
- Dump angle up to 120°.
- Bolt-on blade with recessed nut included.
- High-capacity.
- Shock absorber cushions.
- HD hydraulic cylinder.
- Left-hand or right-hand dump.
Product Specifications
|
Model |
Category |
Width (in) |
Capacity (Yd³) |
Weight (lbs)* |
|---|---|---|---|---|
| GLDS05A-084 (SKID STEER) | 5 | 84 | 0.75 | 1,100 |
| GLD05B2-096 | 5 | 96 | 1.35 | 2,000 |
| GLD05C-096 | 5 | 96 | 1.75 | 2,250 |
| GLDS05B-100 (SKID STEER) | 5 | 100 | 1 | 1,300 |
| GLD05B2-100 | 5 | 100 | 1.25 | 2,100 |
| GLD10B-092 | 10 | 92 | 1.25 | 2,000 |
| GLD20D-100 | 20 | 100 | 2 | 2,900 |
| GLD30E-108 | 30 | 108 | 2.5 | 4,100 |
| GLD40E-108 | 40 | 108 | 2.75 | 4,300 |
| GLD60H-125 | 60 | 125 | 4.25 | 7,600 |
*Weight without lugs
All types of loaders.
- Optional bolt-on blade
