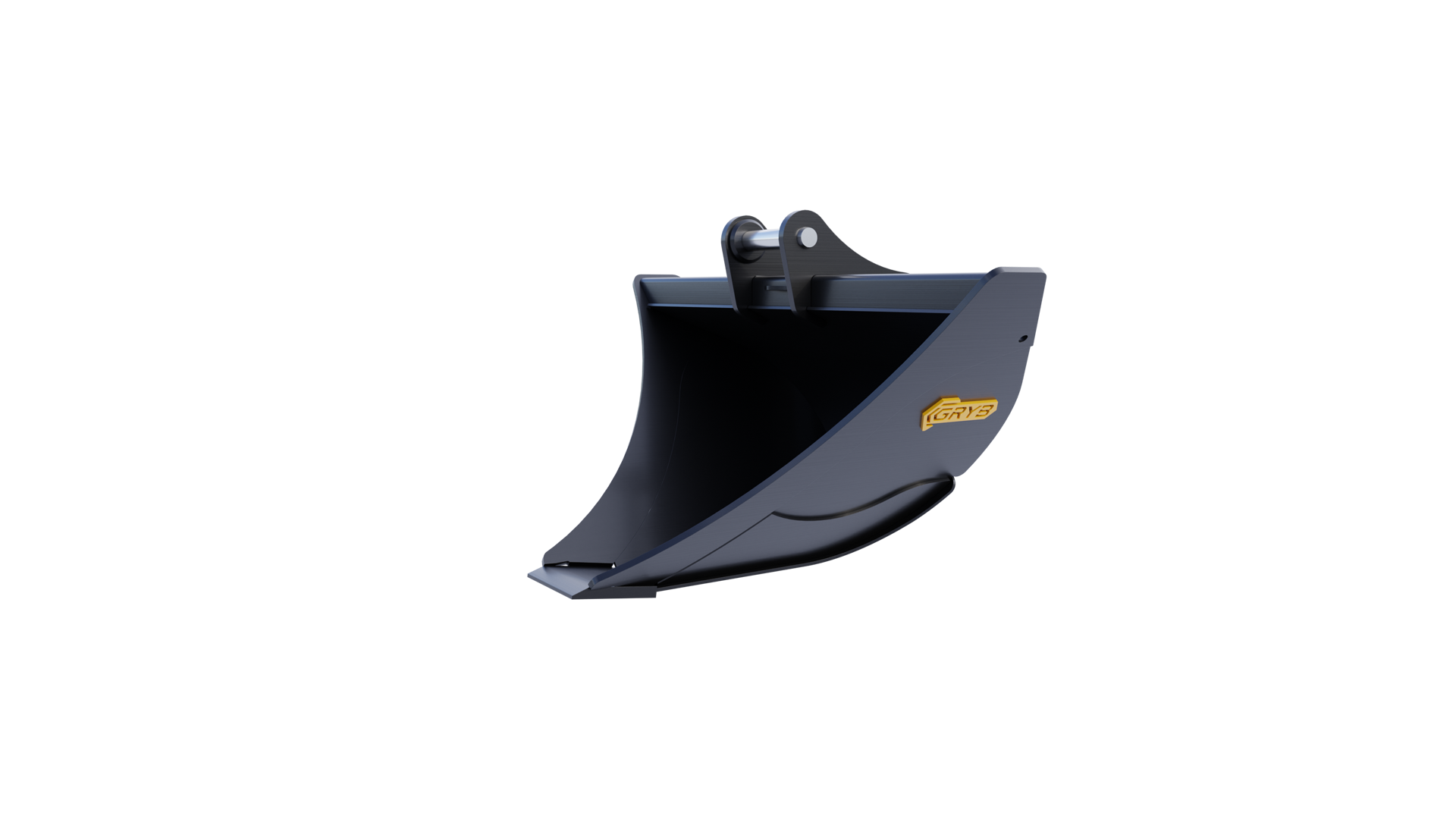

TRAPEZOIDAL BUCKET
GRYB's trapezoidal bucket design is perfect for digging ditches with its 45° angles. The trapezoidal bucket ensures that a minimum of the soil is removed, therefore allowing for fewer digging cycles. Our trapezoidal bucket design comes available with or without teeth.
- Ideal for digging ditches.
- Guaranteed time-saver 45° angle to the blade.
Product Specifications
|
Model |
Machine Weight (tons) |
Weight (lbs) |
Width (IN) |
Capacity (Yd3) |
|---|---|---|---|---|
| GPV120-66F | 10 to 15 | 875 | 66" | 0.85 |
| GPV160-66F | 16 to 19 | 925 | 66" | 0.90 |
| GPV200-86G | 20 to 23 | 1500 | 86" | 1.35 |
| GPV270-92H | 24 to 29 | 2750 | 92" | 2.00 |
| GPV300-94I | 30 to 39 | 2950 | 94" | 2.25 |
For excavators from 3.5 to 40 tons.
- Interchangeable teeth are optional.
