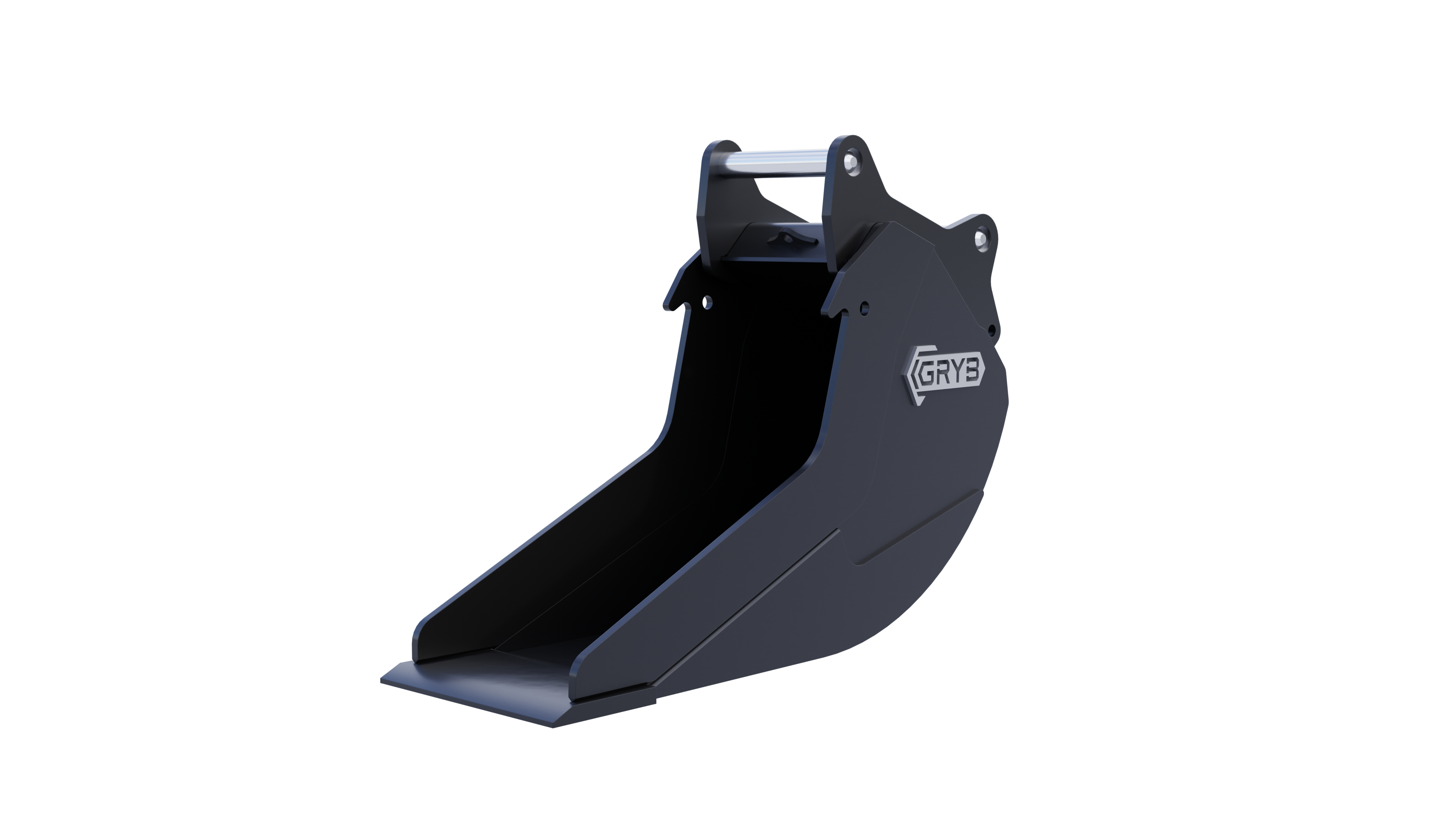

SYMMETRICAL TRENCHING BUCKET

SYMMETRICAL

When digging narrow cable trenches, pipe culverts, or drains, GRYB’s symmetrical trenching buckets make the job easier. The extended front section delivers extra precision when using a tiltrotator. The symmetrical trenching bucket’s narrow shape and cutting edge enable the bucket to dig deep trenches and work more easily underneath pipes or cables.

Dig deep trenches without the tiltrotator having to go below the surface level.
Optimized material selection to lower weight without compromising on durability.
Back wear plates made of abrasion-resistant AR500 steel.

catalog

Selling sheet

Get a quote

Product Specifications

Model	Machine Weight (tons)	WEIGHT (lbs)	Width (in)	Volume (Yd³)	Number of teeth
GET035-12C0-S40	2,3 to 3,9	165	12	0.1	0
GET035-12C3-S40	2,3 to 3,9	195	12	0.1	3
GET050-14C0-S40	4 to 5,9	220	14	0.16	0
GET050-14C3-S40	4 to 5,9	250	14	0.16	3
GET075-14C0-S45	6 to 9,9	390	14	0.21	0
GET075-14C3-S45	6 to 9,9	425	14	0.21	3
GET075-16C0-S45	6 to 9,9	410	16	0.22	0
GET075-16C3-S45	6 to 9,9	445	16	0.22	3
GET120-16D0-S60	10 to 15	680	16	0.35	0
GET120-16D3-S60	10 to 15	760	16	0.35	3
GET120-20D0-S60	10 to 15	720	20	0.42	0
GET120-20D3-S60	10 to 15	805	20	0.42	3
GET160-18D0-S60	16 to 19	880	18	0.46	0
GET160-18D3-S60	16 to 19	950	18	0.46	3
GET200-24E0-S70	20 to 23	1295	24	0.65	0
GET200-24E3-S70	20 to 23	1400	24	0.65	3
GET270-26F0-S70	24 to 29	1625	26	0.85	0
GET270-26F3-S70	24 to 29	1750	26	0.85	3
