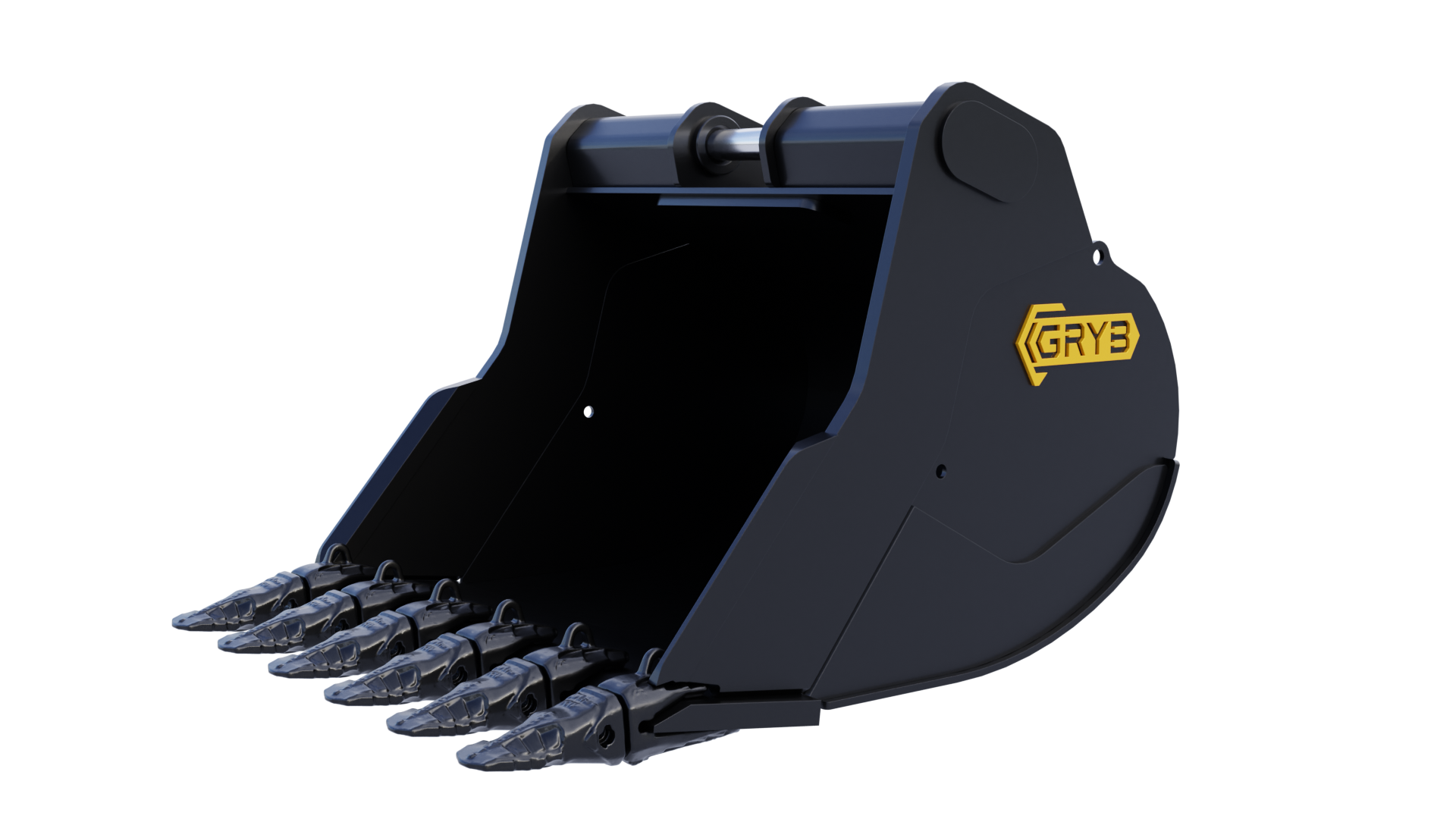

RECESSED BUCKET
The GRYB recessed bucket is designed specifically for use with a pin grabber. With its recessed pins and heavy-duty design, our recessed bucket is made with digging force in mind. The geometry allows the same breakout force as an OEM bucket.
- Provides the same digging power as the original bucket.
- Reduces the risk of the bucket possibly domaging the excavator.
Product Specifications
|
Model |
Machine Weight (tons) |
Weight (lbs) |
Width (in) |
Capacity (yd3) |
Number of teeth |
|---|---|---|---|---|---|
| GRD035-12A3 | 2,3 to 3,9 | 150 | 13" | 0.05 | 3 |
| GRD035-18B4 | 2,3 to 3,9 | 170 | 19" | 0.09 | 4 |
| GRD035-24C5 | 2,3 to 3,9 | 245 | 26" | 0.12 | 5 |
| GAD035-30C5 | 2,3 to 3,9 | 230 | 31" | 0.16 | 5 |
| GRD050-12B3 | 4 to 5,9 | 200 | 12-3/4" | 0.09 | 3 |
| GRD050-16C4 | 4 to 5,9 | 230 | 17-1/2" | 0.12 | 4 |
| GRD050-18C4 | 4 to 5,9 | 260 | 19-1/2" | 0.14 | 4 |
| GRD050-24C5 | 4 to 5,9 | 305 | 25-1/2" | 0.2 | 5 |
| GRD050-30D5 | 4 to 5,9 | 350 | 31-1/2" | 0.26 | 5 |
| GRD075-18C4 | 6 to 9,9 | 410 | 20" | 0.18 | 4 |
| GRD075-24D4 | 6 to 9,9 | 480 | 26" | 0.26 | 4 |
| GRD075-30D5 | 6 to 9,9 | 570 | 32" | 0.35 | 5 |
| GAD075-36D6 | 6 to 9,9 | 643 | 37" | 0.45 | 6 |
All types of compact excavators.
- Welded pins, can only be used with a pin grabber.
