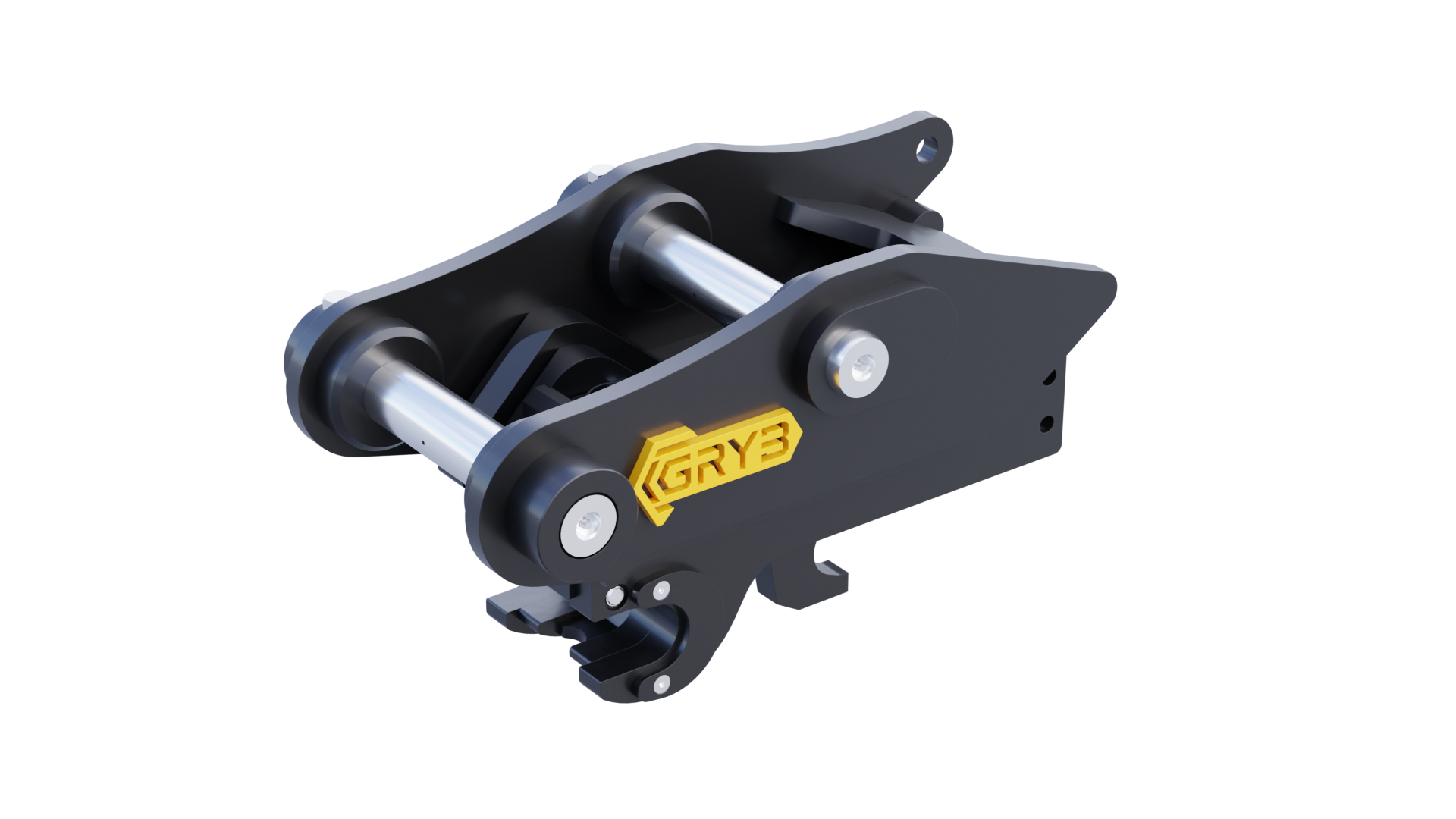

PIN GRABBER QUICK COUPLER

Compact excavators

Our hydraulic pin grabber quick coupler is made of heavy-duty steel and is equipped with a dual safety system in case of hydraulic failure. With the sliding jaw design, the GRYB pin grabber quick coupler can fit multiple pin centers, allowing it to grab easily various OEM attachments.

Dual safety system
Compatible with multiple types of attachments.
Maximizes the efficiency of your attachments.

catalog

Selling sheet

Get a quote

Product Specifications

How the double safety works

From the cab, you can visually see when the quick coupler is locked in place, thus ensuring the bucket won't fall. This is done by the cylinder moving on top of the front pin. Before the operator can disconnect, the GRYB hydraulic pin grabber quick coupler requires the system pressure against the integrated lock valve. This feature reduces the likelihood of releasing your attachment unexpectedly because of the full-system pressure requirement before hydraulic oil flows to the pin grabber quick coupler's cylinder. The upgraded two-stage control protects the operator from bumping the wrong switch in the cab. The in-cab control features two buttons: the first requires the operator to press and hold down for two seconds, then at the same time, press the second button. This reverses the hydraulic flow to release the attachment.

Model	Category	Machine Weight (tons)	Weight (lb)	Front Pin Diameter (mm)	Locking Type	Locking System
PMB015	15	1.5 to 2.2	30	30	Pin	Mechanical
PGG035-035	35	2.3 to 3.9	85	35	Sliding jaw	Mec. or Hydr.
PGG040-035	35	2.3 to 3.9	100	40	Sliding jaw	Mec. or Hydr.
PGG045-050	50	4 to 5.9	160	45	Sliding jaw	Mec. or Hydr.
PGG050-050	50	4 to 5.9	165	50	Sliding jaw	Mec. or Hydr.
PGG045-075	75	6 to 9.9	225	45	Sliding jaw	Mec. or Hydr.
PGG050-075	75	6 to 9.9	225	50	Sliding jaw	Mec. or Hydr.
PGG055-075	75	6 to 9.9	230	55	Sliding jaw	Mec. or Hydr.
PGG060-075	75	6 to 9.9	250	60	Sliding jaw	Mec. or Hydr.
