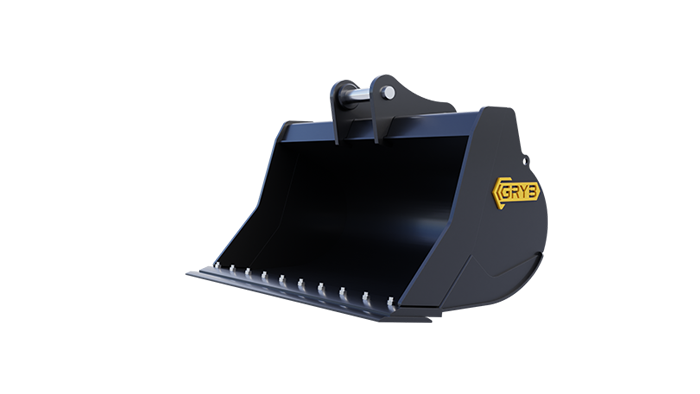

DITCHING BUCKET
GRYB's ditching buckets are built with solid and resistant steel, allowing you to work with great precision. The ditching buckets are available in different sizes and capacities for different types of work and excavators. Possible to combine with our universal tilt mechanism. Your standard bucket will then tilt, which will enable more work possibilities.
- Filling and dumping at an optimized angle.
- A reversible quick-coupler is available for up to 15 tons.
- Maintenance time is reduced.
Product Specifications
|
Model |
Machine Weight (tons) |
Weight (lbs) |
Width (in) |
Volume (Yd³) |
HOOK |
|---|---|---|---|---|---|
| GAF015-24B | 1.5 to 2.2 | 101 | 24 | 0,08 | OPTIONAL |
| GAF015-30B | 1.5 to 2.2 | 120 | 30 | 0,1 | OPTIONAL |
| GAF015-36C | 1.5 to 2.2 | 140 | 36 | 0,12 | OPTIONAL |
| GAF015-39C | 1.5 to 2.2 | 145 | 39 | 0,13 | OPTIONAL |
| GAF035-30C | 2.3 to 3.9 | 190 | 30 | 0,18 | OPTIONAL |
| GAF035-36C | 2.3 to 3.9 | 215 | 36 | 0,23 | OPTIONAL |
| GAF035-42D | 2.3 to 3.9 | 245 | 42 | 0,26 | OPTIONAL |
| GAF035-48D | 2.3 to 3.9 | 270 | 48 | 0,31 | OPTIONAL |
| GAF050-36D | 4 to 5.9 | TBC | TBC | TBC | |
| GAF050-42D | 4 to 5.9 | 330 | 42 | 0,36 | OPTIONAL |
| GAF050-48D | 4 to 5.9 | 365 | 48 | 0,42 | OPTIONAL |
| GAF050-54D | 4 to 5.9 | 395 | 54 | 0,47 | OPTIONAL |
| GAF050-60E | 4 to 5.9 | 430 | 60 | 0,53 | OPTIONAL |
| GAF075-36D | 6 to 9.9 | 430 | 36 | 0,5 | INCLUDE |
| GAF075-42E | 6 to 9.9 | 470 | 42 | 0,59 | INCLUDE |
| GAF075-48E | 6 to 9.9 | 515 | 48 | 0,7 | INCLUDE |
| GAF075-54E | 6 to 9.9 | 555 | 54 | 0,78 | INCLUDE |
| GAF075-60F | 6 to 9.9 | 595 | 60 | 0,88 | INCLUDE |
| GAF120-48E | 10 to 15 | 1,030 | 48 | 0,75 | |
| GAF120-60F | 10 to 15 | 1,200 | 60 | 1 | |
| GAF120-66G | 10 to 15 | 1,280 | 66 | 1,12 | |
| GAF120-72G | 10 to 15 | 1,360 | 72 | 1,25 | |
| GAF160-60G | 16 to 19 | 1,260 | 60 | 1,25 | |
| GAF160-66G | 16 to 19 | 1,350 | 66 | 1,4 | |
| GAF160-72H | 16 to 19 | 1,440 | 72 | 1,55 | |
| GAF200-60G | 20 to 23 | 1,690 | 60 | 1,5 | |
| GAF200-66H | 20 to 23 | 1,895 | 66 | 1,75 | |
| GAF200-72H | 20 to 23 | 2,000 | 72 | 2 | |
| GAF200-78I | 20 to 23 | 2,125 | 78 | 2,1 | |
| GAF270-72H | 24 to 29 | 2,050 | 72 | 2 | |
| GAF270-78I | 24 to 29 | 2,165 | 78 | 2,2 | |
| GAF270-84I | 24 to 29 | 2,280 | 84 | 2,4 | |
| GAF300-72J | 30 to 39 | 3,040 | 72 | 2,6 | |
| GAF300-78J | 30 to 39 | 3,250 | 78 | 2,75 | |
| GAF300-84J | 30 to 39 | 3,428 | 84 | 3 | |
| GAF400-72K | 40 to 49 | 3,970 | 72 | 3,3 | |
| GAF400-78L | 40 to 49 | 4,175 | 78 | 3,65 | |
| GAF400-84L | 40 to 49 | 4,380 | 84 | 4 |
All types of backhoes.
- Bolted and interchangeable blades are optional.
