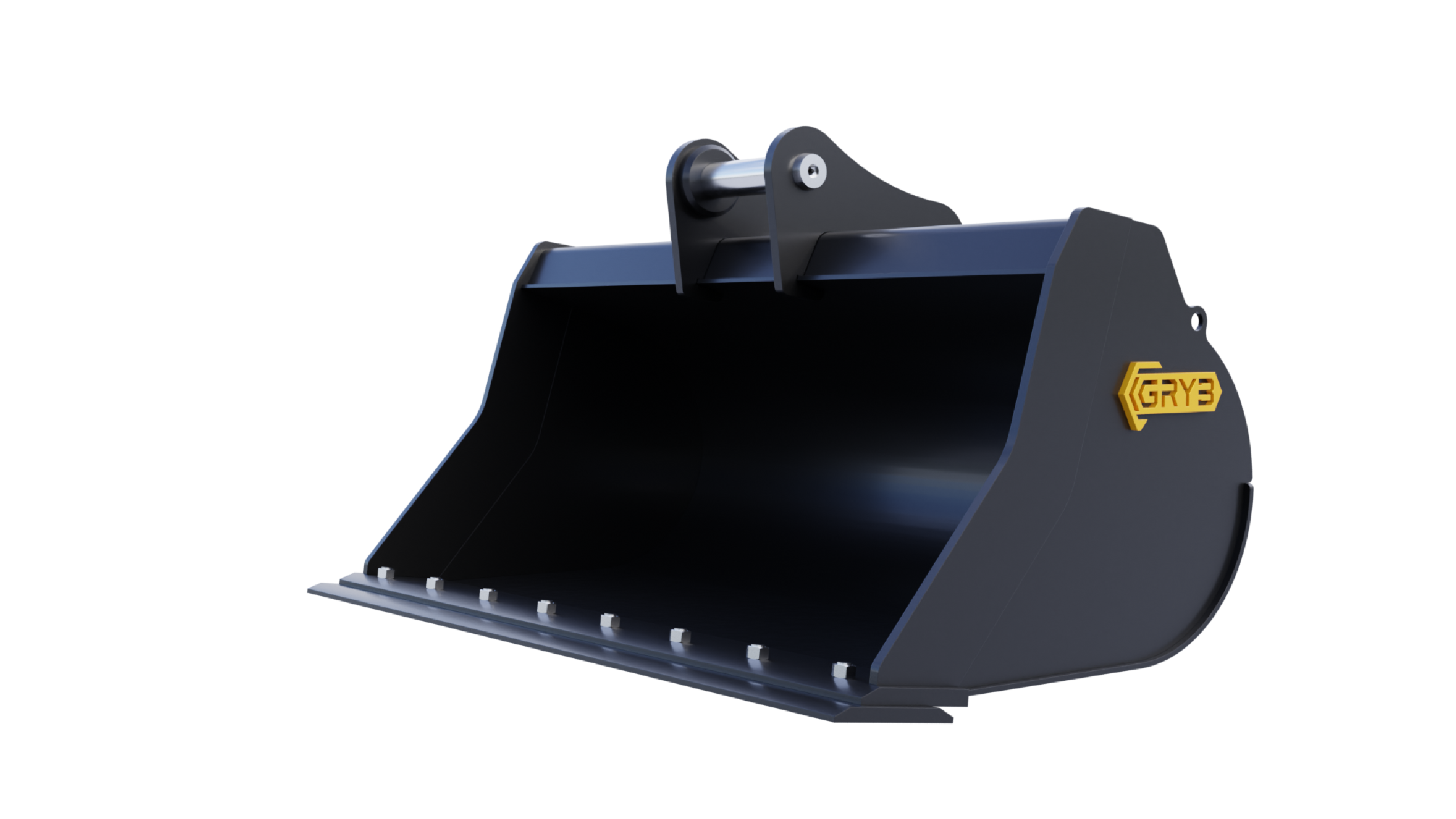

DITCHING BUCKET

Compact excavators

GRYB's ditching buckets are built with solid and resistant steel, allowing you to work with great precision. The ditching buckets are available in different sizes and capacities for different types of work and excavators. Possible to combine with our universal tilt mechanism. Your standard bucket will then tilt, which will enable more work possibilities.

Filling and dumping at an optimized angle.
Reversible quick-couplers are available up to 15 tons.
Maintenance time is reduced.

catalog

Selling sheet

Get a quote

Product Specifications

Model	Machine Weight (tons)	Weight (lbs)	Width (in)	Volume (Yd³)	HOOK
GAF015-24B	1.5 to 2.2	101	24	0,08	OPTIONAL
GAF015-30B	1.5 to 2.2	120	30	0,1	OPTIONAL
GAF015-36C	1.5 to 2.2	140	36	0,12	OPTIONAL
GAF015-39C	1.5 to 2.2	145	39	0,13	OPTIONAL
GAF035-30C	2.3 to 3.9	190	30	0,18	OPTIONAL
GAF035-36C	2.3 to 3.9	215	36	0,23	OPTIONAL
GAF035-42D	2.3 to 3.9	245	42	0,26	OPTIONAL
GAF035-48D	2.3 to 3.9	270	48	0,31	OPTIONAL
GAF050-36D	4 to 5.9	TBC	TBC	TBC
GAF050-42D	4 to 5.9	330	42	0,36	OPTIONAL
GAF050-48D	4 to 5.9	365	48	0,42	OPTIONAL
GAF050-54D	4 to 5.9	395	54	0,47	OPTIONAL
GAF050-60E	4 to 5.9	430	60	0,53	OPTIONAL
GAF075-36D	6 to 9.9	430	36	0,5	INCLUDE
GAF075-42E	6 to 9.9	470	42	0,59	INCLUDE
GAF075-48E	6 to 9.9	515	48	0,7	INCLUDE
GAF075-54E	6 to 9.9	555	54	0,78	INCLUDE
GAF075-60F	6 to 9.9	595	60	0,88	INCLUDE
