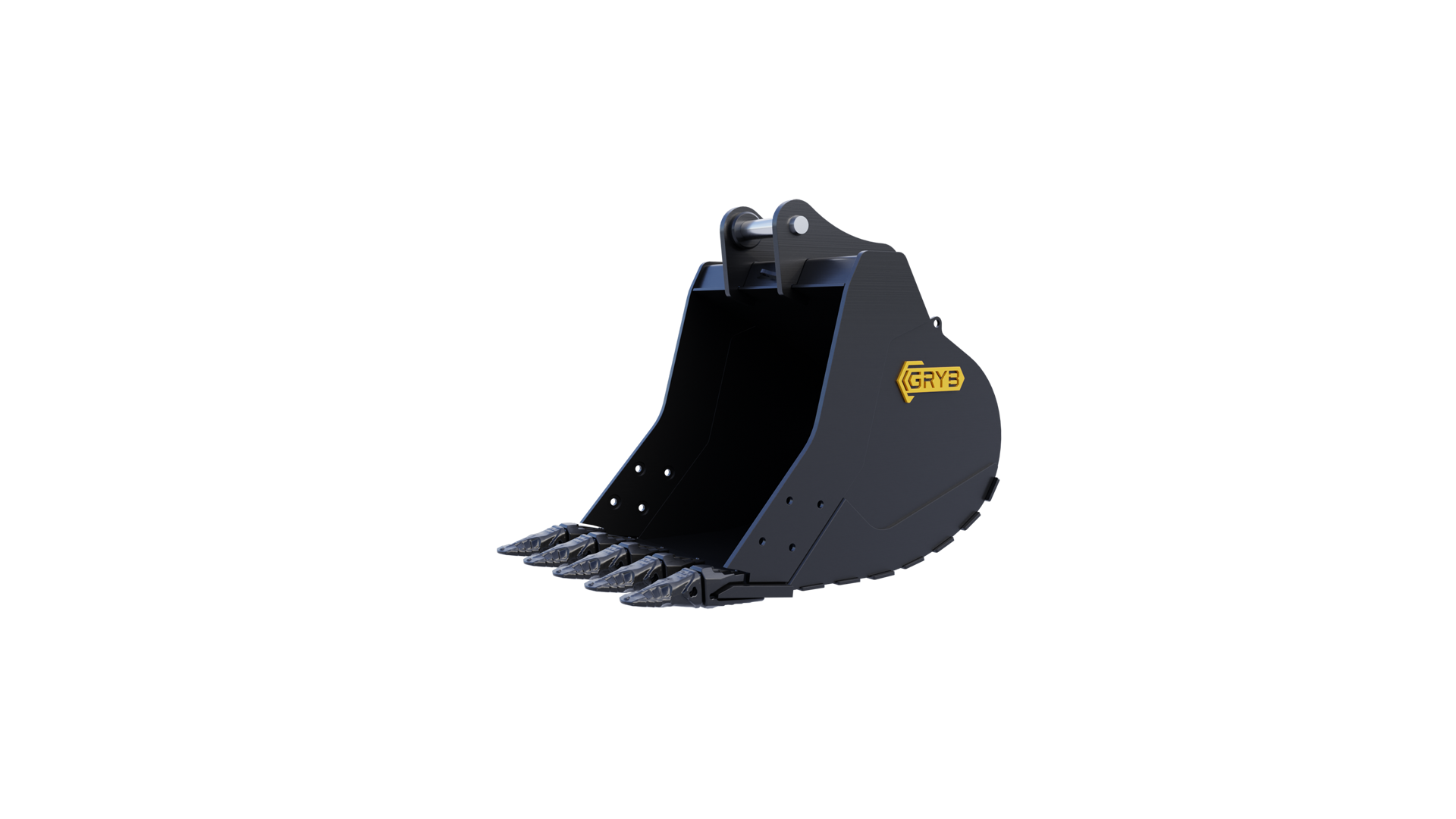

DIGGING BUCKET

| | | | |

-180° 180°

HD

With its advanced design facilitating penetration, the GRYB excavator digging bucket will exceed your expectations. Different models are available depending on your applications. Available in multiple widths and capacities for different types of jobs and excavators. The design of GRYB's excavator digging buckets is designed to optimize the breakout power of the excavator. By having tip radius lengths similar to the manufacturers, our excavator digging buckets significantly eliminate the loss of power compared to a non-standard bucket. The double radius in the bottom of the excavator digging bucket ensures smooth digging to reduce premature bucket wear.

Buckets are offered in several configurations for the thickness and the type of material in order to adapt to your use.
Optimized angle filling and dumping.
Adapts to all types of attachment.

catalog

Selling sheet

Get a quote

Product Specifications

Model	Machine Weight (tons)	Weight (lbs)	Width (in)	Capacity (cu/Yd)	Number of teeth
GAD120-18D3	10 to 15	935	20	0,35	3
GAD120-24D4	10 to 15	1,065	26	0,45	4
GAD120-30E4	10 to 15	1,160	32	0,7	4
GAD120-30E5	10 to 15	1,190	32	0,7	5
GAD120-36F5	10 to 15	1,285	38	0,85	5
GAD120-36F6	10 to 15	1,315	38	0,85	6
GAD120-42F5	10 to 15	1,390	44	1	5
GAD120-42F7	10 to 15	1,450	44	1	7
GAD120-48G6	10 to 15	1,510	50	1,2	6
GAD160-24E3	16 to 19	1,290	26	0,50	3
GAD160-24E4	16 to 19	1,300	26	0,50	4
GAD160-30E4	16 to 19	1,450	32	0,75	4
GAD160-30E5	16 to 19	1,470	32	0,75	5
GAD160-36F5	16 to 19	1,595	38	0,95	5
GAD160-36F6	16 to 19	1,620	38	0,95	6
GAD160-42G5	16 to 19	1,690	44	1,1	5
GAD160-42G7	16 to 19	1,750	44	1,1	7
GAD160-48G5	16 to 19	1,835	50	1,3	6
GAD160-48G8	16 to 19	1,890	50	1,3	8
GAD200-24E3	20 to 23	1,500	26-1/2	0,65	3
GAD200-24E4	20 to 23	1,540	26-1/2	0,65	4
GAD200-30F4	20 to 23	1,680	32-1/2	0,85	4
GAD200-36G5	20 to 23	1,860	38-1/2	1,05	5
GAD200-42G5	20 to 23	2,010	44-1/2	1,3	5
GAD200-42G6	20 to 23	2,050	44-1/2	1.3	6
GAD200-48G5	20 to 23	2,150	50-1/2	1,55	5
GAD200-48G7	20 to 23	2,225	50-1/2	1,55	7
GAD250-24E3	24 to 29	2,010	27	0,75	3
GAD250-30F3	24 to 29	2,180	33	1	3
GAD250-30F4	24 to 29	2,230	33	1	4
GAD250-36G4	24 to 29	2,400	39	1,25	4
GAD250-36G5	24 to 29	2,450	39	1,25	5
GAD250-42H5	24 to 29	2,615	44	1,5	5
GAD250-48H5	24 to 29	2,785	50	1,75	5
GAD250-48H6	24 to 29	2,835	50	1,75	6
GAD250-54H6	24 to 29	3,000	56	2	6
GAD250-54H7	24 to 29	3,055	56	2	7
GAD250-60I6	24 to 29	3,170	62	2,25	6
GAD250-60I8	24 to 29	3,275	62	2,25	8
GAD300-24F3	30 to 39	2,800	27	0,8	3
GAD300-30G3	30 to 39	3,000	33	1,05	3
GAD300-36G4	30 to 39	3,270	39	1,35	4
GAD300-42H4	30 to 39	3,460	45	1,65	4
GAD300-42H5	30 to 39	3,540	45	1,65	5
GAD300-48H5	30 to 39	3,725	51	2	5
GAD300-54I5	30 to 39	3,910	57	2,2	5
GAD300-54I6	30 to 39	3,990	57	2,2	6
GAD300-60I6	30 to 39	4,180	63	2,5	6
GAD300-60I7	30 to 39	4,260	63	2,5	7
GAD400-30G3	40 to 49	4,260	33	1,35	3
GAD400-36H4	40 to 49	4,690	39	1,7	4
GAD400-42I4	40 to 49	5,000	45	2,05	4
GAD400-48I4	40 to 49	5,310	51	2,45	4
GAD400-48I5	40 to 49	5,425	51	2,45	5
GAD400-54J5	40 to 49	5,740	57	2,8	5
GAD400-60K5	40 to 49	6,050	63	3,15	5
GAD400-60K6	40 to 49	6,165	63	3,15	6
GAD400-66L5	40 to 49	6,360	69	3,55	5
GAD400-66L6	40 to 49	6,480	69	3,55	6
GAD400-72L6	40 to 49	6,790	75	3,9	6
GAD400-72L7	40 to 49	6,905	75	3,9	7
