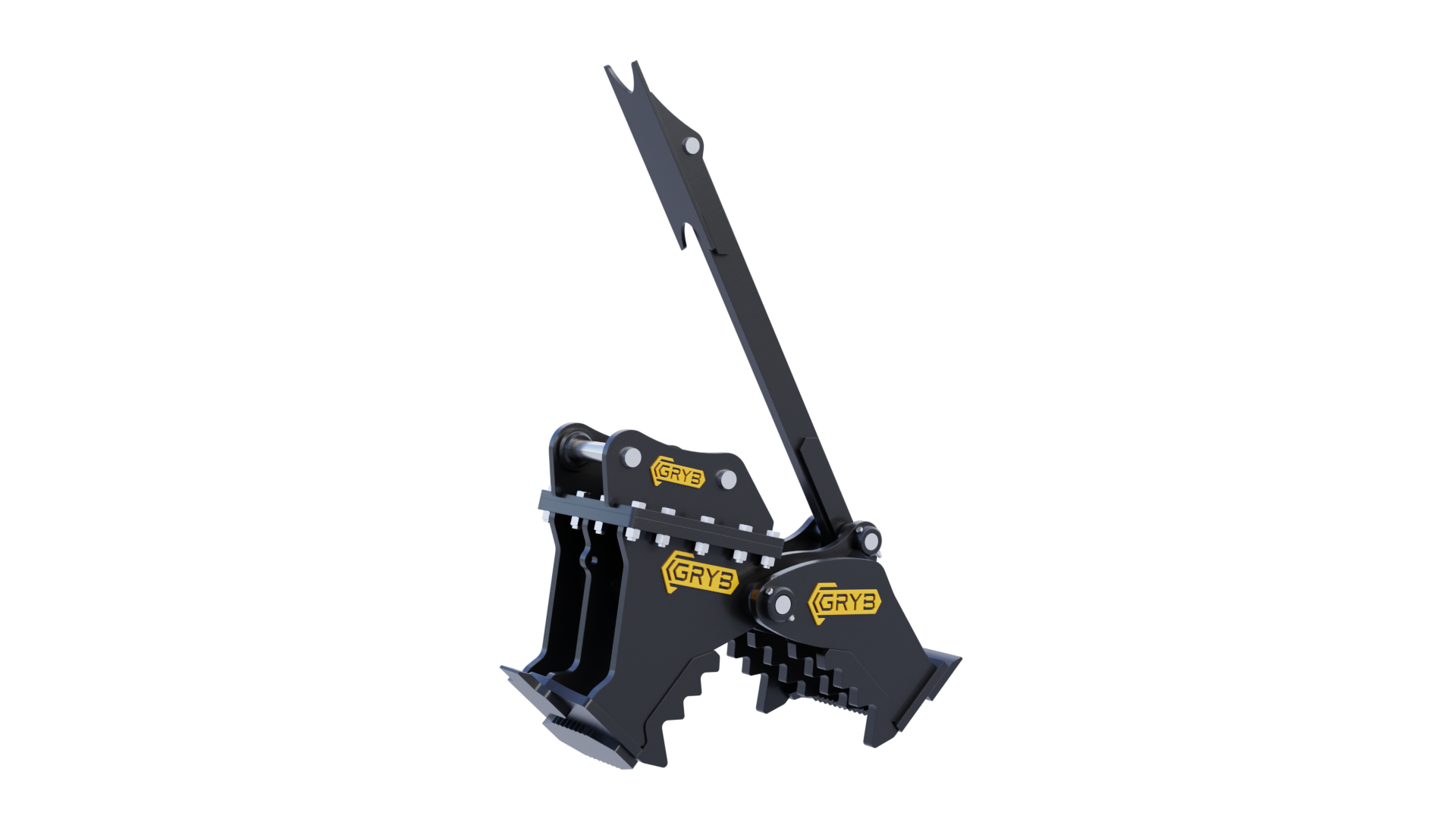

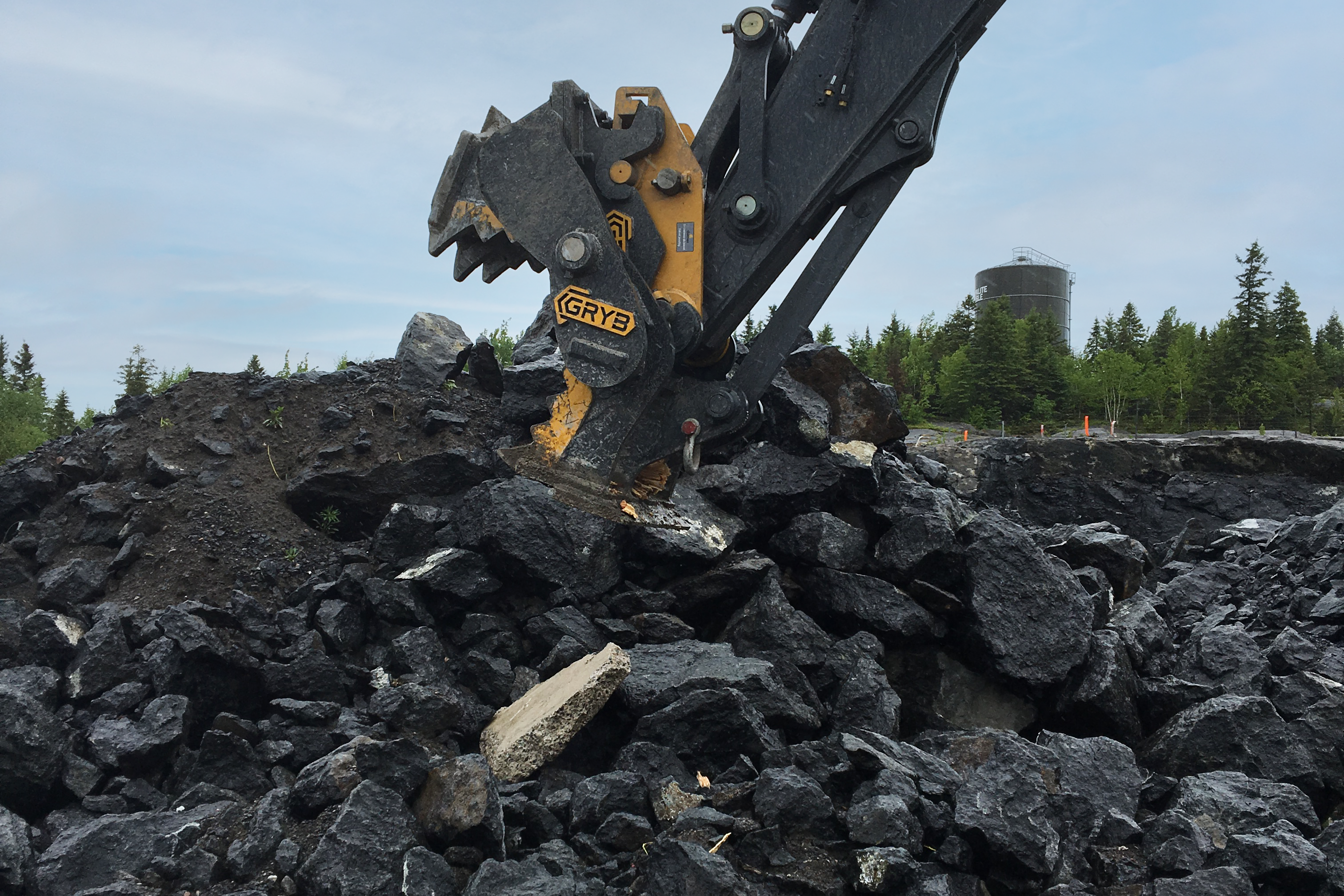

Concrete Pulverizer
Concrete Pulverizer For Excavators
Equipped with interchangeable teeth designed to offer durability and increased crushing power, the concrete pulverizer is designed for smashing and pulverizing several types of concrete. Our concrete pulverizers are made of heavy-duty steel (150.000 PSI), have teeth made of Hardox 500, and offer much more resistance to wear than standard steel. We offer exclusive interchangeable quick disconnectors that are compatible with all of our standard products.
- Stronger jaw than the standard pin-on.
- Mounted on a bolt-on quick hitch “top plate” that is interchangeable.
- Fastest execution system and the biggest strength ratio on the market.
- Interchangeable top plate
Product Specifications
|
Model |
Max Opening (IN) | Width (IN) | Teeth Configuration | Crushing Force Tip (Tons) | Weight (LBS) |
|---|---|---|---|---|---|
| PUB1216-26L | 26 | 26 | 3 to 4 | 60 | 2,000 |
| PUB2027-32L | 36 | 32 | 3 to 4 | 70 | 3,500 |
| PUB3039-37L | 36 | 37 | 3 to 4 | 80 | 5,000 |
| PUB4049-40L | 42 | 40 | 3 to 4 | 90 | 8,000 |
| PUB5065-44L | 54 | 44 | 4 to 5 | 90 | 10,000 |
| PUB6080-48L | 60 | 48 | 4 to 5 | 90 | 12,500 |
Recommended Class
| Machine Class (Tons) | 12 to 16 | 20 to 27 | 30 to 39 | 40 to 49 | 50 to 65 | 60 to 80 |
|---|---|---|---|---|---|---|
| PUB1216-26L | X | |||||
| PUB2027-32L | X | |||||
| PUB3039-37L | X | |||||
| PUB4049-40L | X | |||||
| PUB5065-44L | X | |||||
| PUB6080-48L | X | |||||
All types of excavators.
- Gap teeth are available.
